- Ideal for sinus procedures
- Deep (4.2mm) abutment connection, a large contact area between the abutment and implant, allowing better load distribution
- 1.5° (3° total) Morse taper connection provides mechanical stability and a bacterial seal
- Bacterial seal is free from micro-movement and micro-gaps
- Internal hex allows precise internal positioning, anti-rotational lock
- Beveled/sloping shoulder design removes pressure from the crestal portion of the bone, facilitating bone growth above the shoulder
- OsteoActive® surface for faster and ensured osseointegration
- Self-tapping threads and cutting groves allow for easy insertion and optimum initial stabilization
- Straight wall design

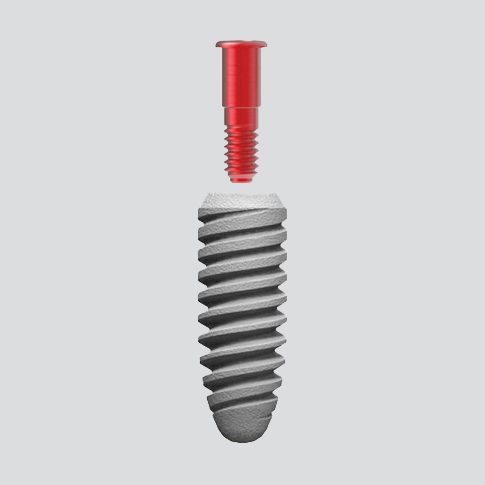

2mm Platform – Red

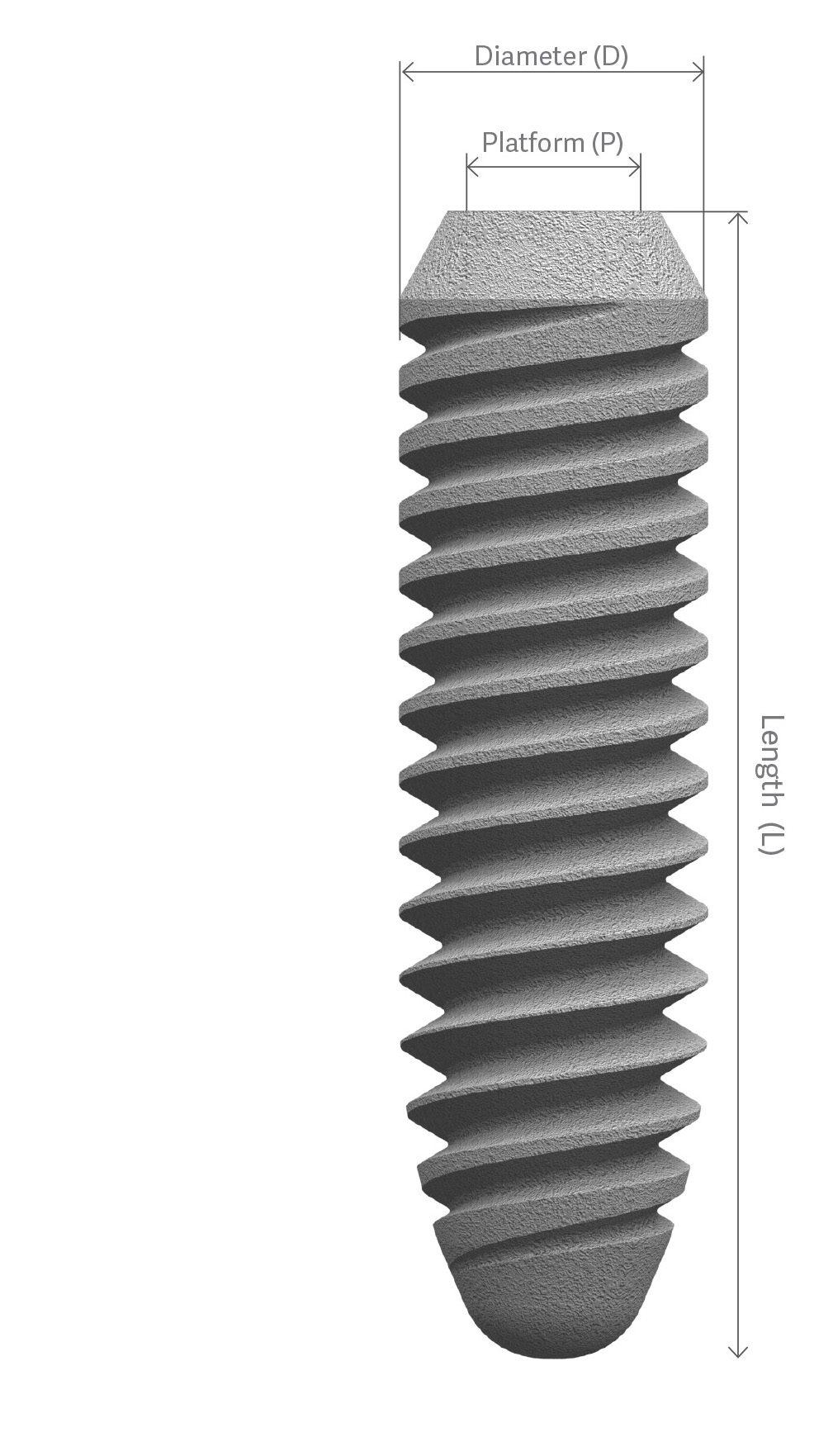

Inplant Sizes
- Diameters (mm) 3.0 & 3.5
- Lengths (mm) 9, 11, 13

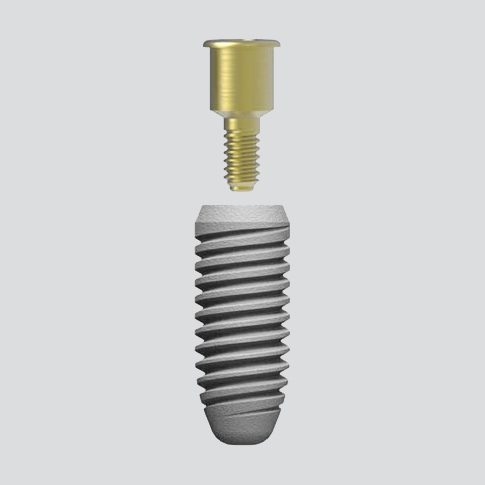

3mm Platform – Yellow
Inplant Sizes
- Diameters (mm) 4.0 & 4.5
- Lengths (mm) 8, 9, 11, 13
- Diameters (mm) 5.0
- Lengths (mm) 8, 9, 11, 13
- Diameters (mm) 6.0
- Lengths (mm) 8, 9
