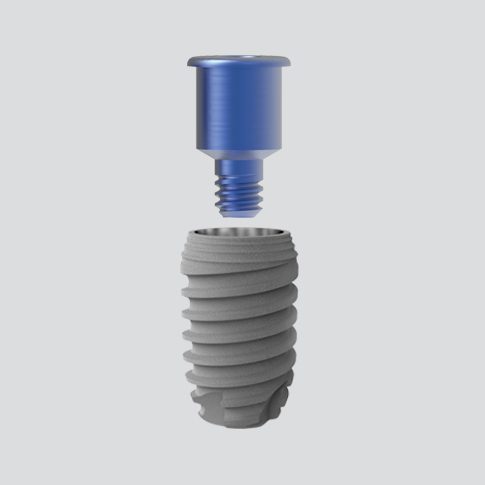

K3Pro™ Short

  • Ideal for maxilla cases to avoid the sinus and mandible cases with limited bone height

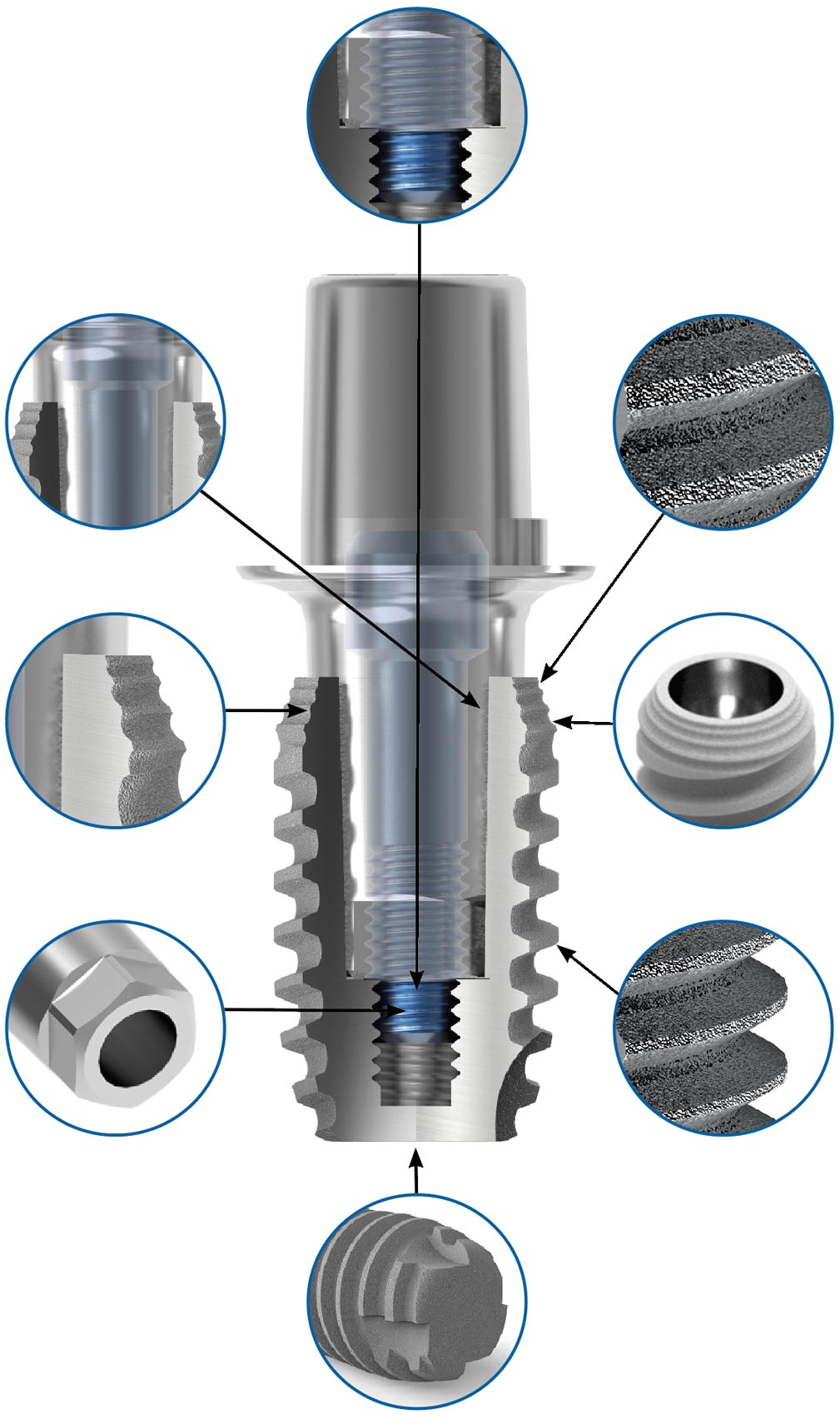

  • Deep (4.2mm) abutment connection, a large contact area between the abutment and implant, allowing better load distribution
  • 1.5° (3° total) Morse taper connection provides mechanical stability and a bacterial seal
  • Bacterial seal is free from micro-movement and micro-gaps
  • Internal hex allows precise internal positioning, anti-rotational lock
  • Beveled/sloping shoulder design removes pressure from the crestal portion of the bone, facilitating bone growth above the shoulder
  • OsteoActive® surface for faster and ensured osseointegration
  • Self-tapping threads and cutting groves allow for easy insertion and optimum initial stabilization
  • Tapered design
  • Controlled implant placement, can be fully guided
VSK3K_S

Short Platform – Blue

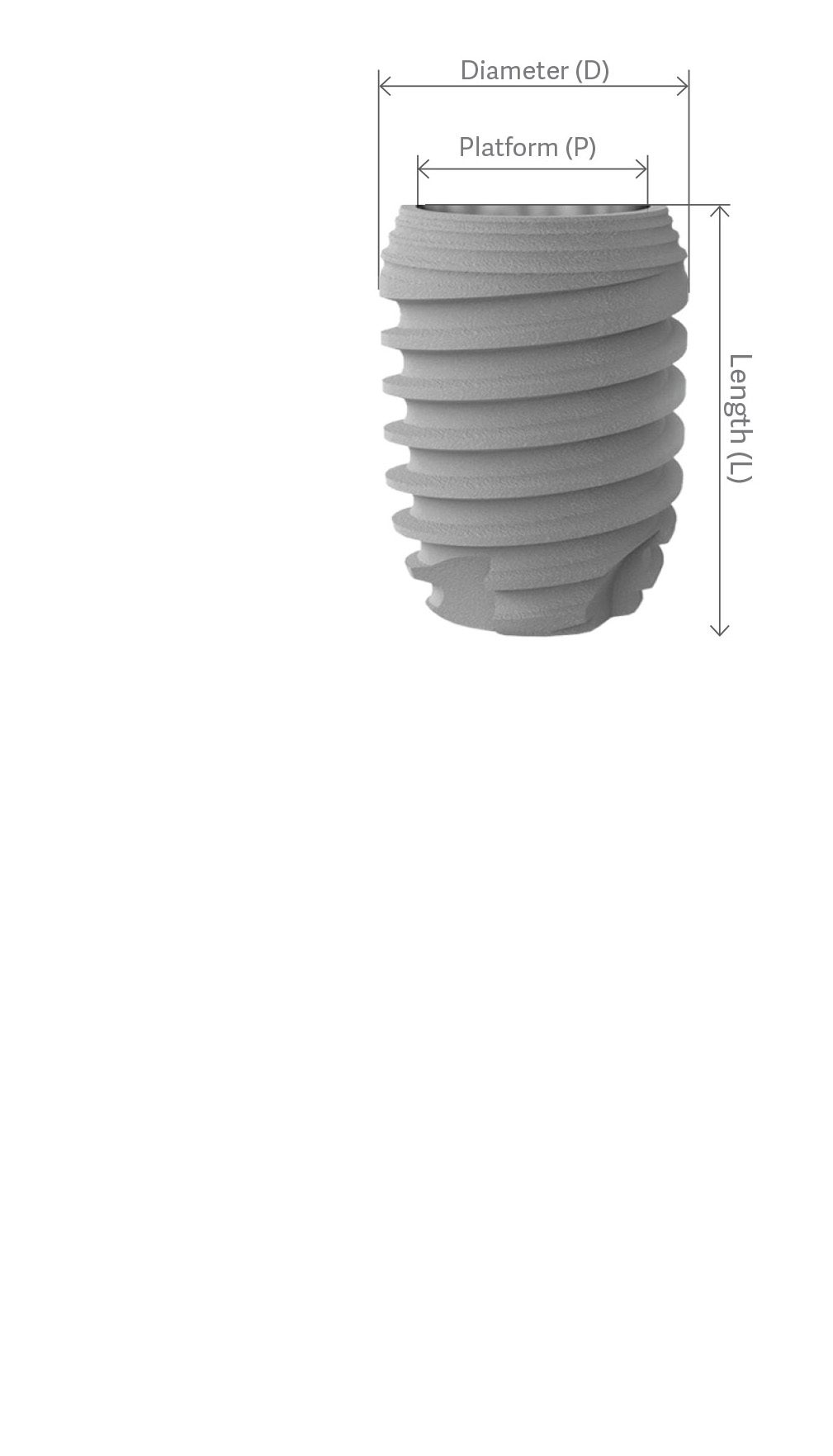

Inplant Sizes

  • Diameters (mm)
    4.0, 4.5, 5.0, 6.0
  • Lengths (mm)
    5.5, 6.5, 7.5
