Ti-Base Abutments (CS)

  • Abutment for chairside fabrication of cemented or screw-retained ceramic prosthesis using Cerec technology
  • Scan bodies for Bluecam S and Omnicam S available for digitized implant positioning and abutment placement
  • Anti-rotational scan cap assured by a notch at the base of the abutment
  • Abutment cylinder height ensures a good cemented connection of the milled Zirconium structure
  • 1.5° Conical Connection for stability and bacterial seal
  • Available Gingival Heights: 0.5 – 1.5 mm

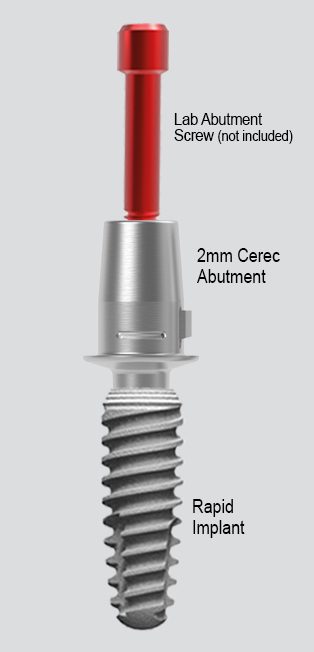

2mm Platform – Red

Torque Recommendations

  • 15-20 Ncm (2mm platform)

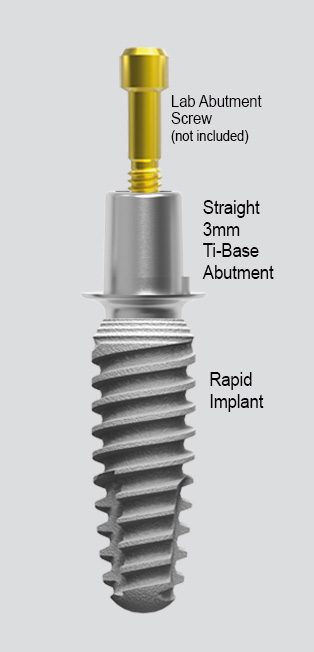

3mm Platform – Yellow

Torque Recommendations

  • 25-30 Ncm (3mm platform)

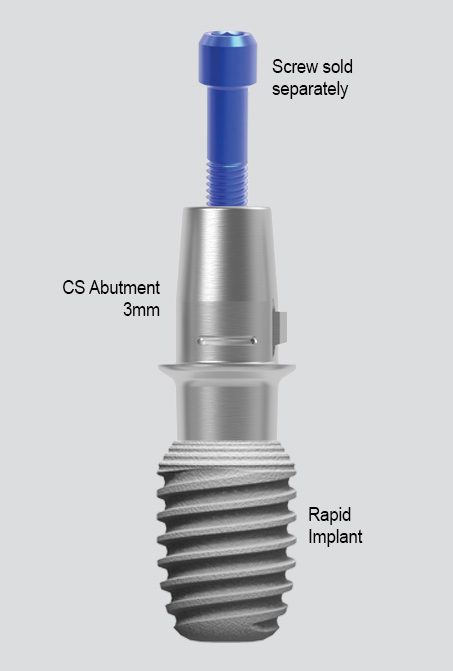

Short Platform – Blue

Torque Recommendations

  • 25-30 Ncm (short platform)
