Ti-Base Abutments (CGV)

  • Flexi-base abutment is a Ti-Base/Hybrid type abutment with titanium nitride coating on the top, customizable by milling or by hand, and not castable
  • It is an extra-long abutment (10mm) which can be individually shortened (to a minimum 4mm), even during the CAD modeling stage
  • The abutment is available only in a 0° angulation and is intended for the implementation of single-tooth abutments and restorations
  • Available Gingival Heights: 0.5 – 1.5 mm

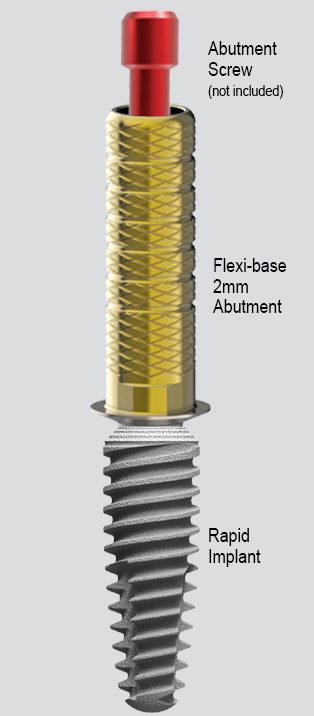

2mm Platform – Red

Torque Recommendations

  • 15-20 Ncm (2mm platform)

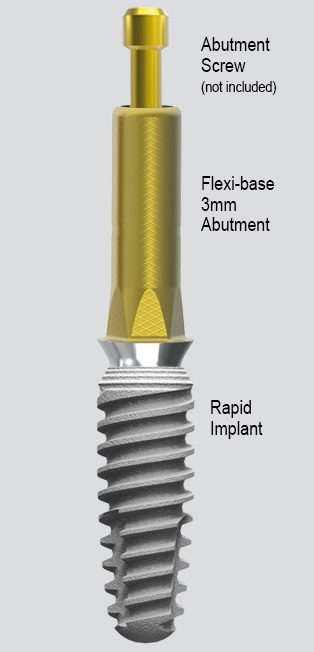

3mm Platform – Yellow

Torque Recommendations

  • 25-30 Ncm (3mm platform)

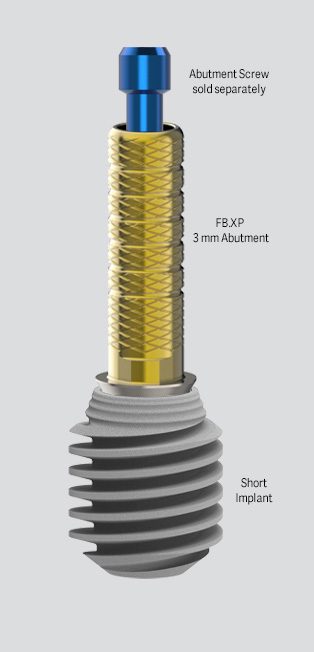

Short Platform – Blue

Torque Recommendations

  • 25-30 Ncm (short platform)
